Architects and consultants may use the specifications below for their project documentation. Select and highlight the product text below, right click and select copy. Open your specification document and paste the saved text. For further information please contact us.

Paper Holding System : Hold Ups
Paper holding system - Hold-Ups ™

Specification

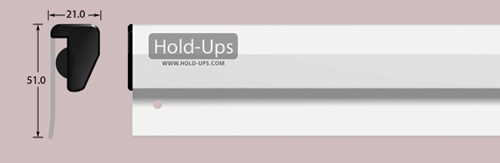

The contractor shall supply and install Creative Aussie (Tel +61 8 8837 3777) Hold-Ups extruded paper holding system (21mm deep x 51mm high) to all positions marked in the plan.
Colour: As indicated in drawings.
Length: As indicated in drawings.
Fastening system: The Hold-Ups shall be screw mounted with 3.5mm zinc plated pan-head screws no less than 20mm in length through each of the pre-drilled mounting holes. (or) The Hold-Ups shall be adhesive mounted with the supplied double sided adhesive. Adhesion surfaces must be clean, sound and free of dust. (or) The Hold-Ups shall be magnetic mounted with the supplied plastic magnet strips.


Paper Holding System : Organiza
Paper holding system - Organiza ™

Specification

The contractor shall supply and install Creative Aussie (Tel +61 8 8837 3777) Organiza extruded paper holding system (23.5mm deep x 43mm high) to all positions marked in the plan.
Colour: As indicated in drawings.
Length: As indicated in drawings.
Fastening system: The Organiza shall be screw mounted with 3.5mm zinc plated pan-head screws no less than 20mm in length through each of the pre-drilled mounting holes. (or) The Organiza shall be adhesive mounted with the supplied double sided adhesive. Adhesion surfaces must be clean, sound and free of dust. (or) The Organiza shall be magnetic mounted with the supplied plastic magnet strips.


Docket Holding System : Restaurant Rail
Docket holding system - Restaurant Rail ™

Specification

The contractor shall supply and install Creative Aussie (Tel +61 8 8837 3777) Restaurant Rail extruded docket holding system (22.5mm high x 58mm wide) to all positions marked in the plan.
Colour: As indicated in drawings.
Length: As indicated in drawings.
Fastening system: Restaurant Rail shall be screw mounted through the endcap with two screws to each end cap using blacked pan-head 3.0mm screws no less than 16mm in length. End caps to be drilled in two locations as marked on underside of end cap mouldings. (or) The Restaurant Rail shall be adhesive mounted with the supplied double sided adhesive. Adhesion surfaces must be clean, sound and free of dust. (or) The Restaurant Rail shall be magnetic mounted with the supplied plastic magnet strips. (or) The Restaurant Rail shall use concealed fastening using strips of 1mm thick sheetmetal 27mm wide pre-screwed to the required location. The Restaurant Rail shall be slid onto these mounting plates by removing one endcap. Endcap should be refastened with a small amount of adhesive on the lower tongue.
